Product Details:
|
| Product Name: | MH Type Single Girder Gantry Crane(Trussed Type) | Keywords: | Trussed Type MH Gantry Crane |
|---|---|---|---|
| Capacity: | 5-20t | Span: | 12-30m |
| Color: | Clients' Requirments | Voltage Overload Protection: | Included |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Ge | Machinery Test Report: | Provided |
| Warranty: | 12 Months | Condition: | New |
| High Light: | 300t Single Girder Gantry Crane,Single Girder Gantry Crane Trussed,fixed gantry crane Trussed Type |
||
Fixed Up To 300t MH Type Single Girder Gantry Crane Trussed Type
MH Type Single Girder Gantry Crane OVERVIEW
It is consisted with gantry frame (main girder, legs, bottom end beams), lifting mechanism, travelling mechanism, and electrical control.
It is used with matching CD1 or MD1 electric hoist, and is a light small crane with rail travelling.
Widely used in workshop, storage, port and hydroelectric power station and some other outdoor places, where it has a low frequency or few lifting times.
It is forbidden to be used with melt metal, inflammable, or explosive objects.
It can be designed with one hanging arm or no-hanging arm according to client's demand.
The structure is mainly divided into three types: 1. Full trusse, 2. Truss type main beam and box type legs, 3. Box type main beam and truss type legs.
MH Type Single Girder Gantry Crane Parameter
|
Parameter(Customized) |
|
|
Lifting capacity(ton) |
Up to 300t |
|
Working class |
A3-A6 |
|
Span(m) |
Up to 30m |
|
Working temperature |
-25~40°C |
|
Lifting height(m) |
Customized |
MH Type Single Girder Gantry Crane FEATURES
Simple structure; installation, use, and maintenance are all convenient.
Lighter weight, more cost-effective and good wind resistance
Parts standardization, generalization and seriation
Good in usability and produce conveniently

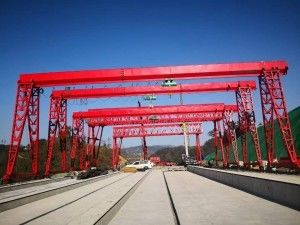

MH Type Single Girder Gantry Crane Images
