Product Details:
|
Applicable Industries: | Farms, Printing Shops, Machinery Repair Shops | Product Name: | Orange Peel Grab Bucket |
---|---|---|---|
Color: | Red Yellow Or Customized | Main Electrical Parts: | Schneider |
Application: | Scraps Material Handling | Key Words: | Grab |
High Light: | Clamshell Grab Bucket 5.0m3,OEM Clamshell Grab Bucket,clamshell crane bucket 8.0m3 |
OEM Steel Bulk Cargo Clamshell Grab Bucket 5.0m³ 8.0m³ Remote Control
Steel Bulk Cargo Clamshell Grab Bucket Description
With two pieces of buckets hinged mechanically in the middle, the clamshell bucket is named after its clam-shaped appearance with internal volume and sophisticated design. The main digging part, aka cutting edge, is attached by a bracket/hangar for vertical scooping.
Type: QZ 5T,10T,15T Model Motor-driven Double Beam/Girder Grapple Crane
Lifting capacity: 5t~20t
Span: 10.5~31.5m. Non-standard design can also be caught out according your requirement.
Steel Bulk Cargo Clamshell Grab Bucket Technical Parameters
Model |
Volume (m³) |
Grab self-weight (t) |
Using crane ton (t) |
Motor power (KW) |
Operating Pressure bar |
Close time (S) |
DYZ3(0.5) |
0.5 |
1.5 |
3.2 |
11 |
180 |
10 |
DYZ3(0.6) |
0.6 |
1.7 |
3.2 |
11 |
180 |
11 |
DYZ5(0.8) |
0.8 |
2.0 |
5 |
15 |
180 |
13 |
DYZ5(1.0) |
1.0 |
2.5 |
5 |
15 |
180 |
14 |
DYZ10(2) |
2 |
4.2 |
10 |
22 |
200 |
16 |
DYZ52.5) |
2.5 |
2.6 |
5 |
18.5 |
180 |
17 |
DYZ10(3.0) |
3.0 |
3.8 |
10 |
18.5 |
180 |
20 |
DYZ10(5.5) |
5.0 |
4.3 |
10 |
22 |
200 |
19 |
DYZ16(2.5) |
2.5 |
5.5 |
16 |
30 |
200 |
16 |
DYZ16(8.0) |
8.0 |
5.6 |
16 |
30 |
200 |
19 |
DYZ20(4.0) |
4.0 |
7 |
20 |
37 |
200 |
17 |
DYZ20(12) |
12 |
8 |
20 |
37 |
200 |
25 |
DYZ25(17) |
17 |
9 |
25 |
45 |
200 |
26 |
DYZ30(20) |
20 |
11 |
30 |
45 |
200 |
28 |
Steel Bulk Cargo Clamshell Grab Bucket Structure
1. The bridge: traverses on the runway;
2. The crab: traverses on the bridge and lifts up and down;
3. The runway: tied to the building structure.
4. The grab: mounted with the crab.
Steel Bulk Cargo Clamshell Grab Bucket Main Features
Overhead Traveling Crane Price Marine Crane Hydraulic Cargo Clamshell Grab Bucket
1, excavation of foundation pit, excavation of deep foundation pit and loading of mud, sand, coal and gravel.
2, it is especially suitable for digging or loading on the side of a ditch or restricted space.
3. It is suitable for loading and unloading of ships, trains and cars.
Steel Bulk Cargo Clamshell Grab Bucket Application
QZ 5T,10T,15T Model Motor-driven Double Beam/Girder Grapple Crane is widely used to transport, assemble, load and unload incompact goods in mine, port, factory, workshop, warehouses, and goods yard, etc. Grab's open direction is divided into parallel and vertical with main beam and the grab can be double or four wire rope, mechanical or electric hydraulic type according to different work duty and materials.

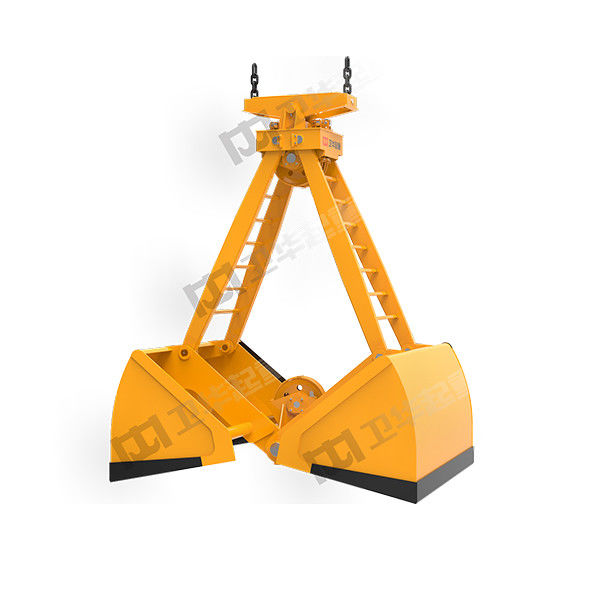

Steel Bulk Cargo Clamshell Grab Bucket Images
