Product Details:
|
| Product Name: | QDY Overhead Crane For Steel Mill | Main Lifting Capacity: | 300 Ton |
|---|---|---|---|
| Span: | 16.5~34.5 M | Ambient Temperature: | -20℃ To +60℃ |
| Control: | Cabin | Work Duty: | A6~A8 |
| Application: | Steel Making | Lifting Speed: | 0-5 M/min(Variable Frequency Drive) |
| Cross Traveling Speed: | 0-25 M/min(Variable Frequency Drive) | Longitude Traveling Speed: | 0-63 M/min(Variable Frequency Drive) |
High Quality QDY Model Electric Overhead Crane For Steel Mill Heavy Duty
QDY Overhead Crane For Steel Mill Description
QDY double-girder bridge-type casting crane is one of the main equipment in the continuous casting process of iron and steel manufacturing. It is mainly used for smelting metal transportation, casting and charging of molten iron.
The operating mechanism and main electrical equipment of the QDY double-girder bridge casting crane are installed in the box girder, which is insulated with rock wool and has an air cooler inside. In order to reduce the heat radiation of the molten structural parts, heat insulation boards are arranged at the bottom of the main girder along the span direction.
QDY Overhead Crane For Steel Mill Specification
| Lifting Capacity | t | 10 | 16 | 20 | 25 | 32 | 50 | 74 |
| Span | m | 16.5~34.5 | ||||||
| Lifting Height | m | 10~20 | ||||||
| Crane Duty | GB | A6~A8 | ||||||
| Lifting Speed | m/min | 0~8 | 0~8 | 0~8 | 0~8 | 0~8 | 0~6.3 | 0~5 |
| Cross Travel Speed | m/min | 0~25 | 0~25 | 0~25 | 0~25 | 0~25 | 0~25 | 0~25 |
| Long Travel Speed | m/min | 0~63 | 0~63 | 0~63 | 0~63 | 0~63 | 0~63 | 0~63 |
| Control Method | / | Automatic, Manual, Semi-Automatic | ||||||
QDY Overhead Crane For Steel Mill Characteristics
1. Heavy-duty double girder overhead crane for steel mills.
2. Special for steel mills.
3. Stable starting and stopping.
4. Walking is safe and reliable, and the service life is long.
5, heat-resistant electrical equipment and wiring.
6. Crane drive: IP54 or IP44, F class insulation
7. High quality with competitive prices.

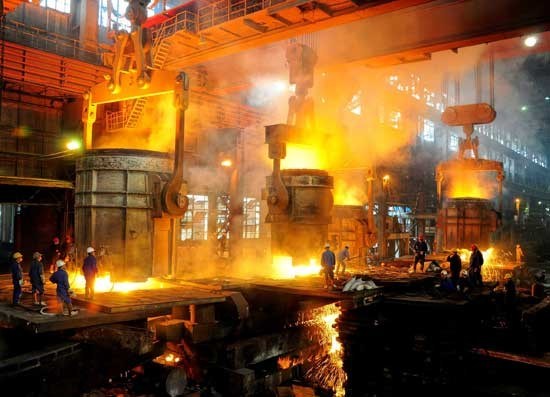

QDY Overhead Crane For Steel Mill Photos
