Product Details:
|
| Name: | Electromagnetic Lifter | Keywords: | Electromagnetic Spreader |
|---|---|---|---|
| Condition: | New | Warranty: | 12 Months |
| Type: | Automatic Operation | Magnetic Keeper Battery: | The Magnetic Plate Keep Magnetism When Power Off |
| Capacity For Scrap: | 3000kg | Overall Dimension: | Customized |
| High Light: | 1tone Circular Lifting Electromagnet,5000kg Circular Lifting Electromagnet,5000kg Electromagnet For Scrap Handling |
||
Electric Powerful 5000kg 1tone Circular Lifting Electromagnet For Scrap Handling
Electromagnetic Lifter Description
Lifting electromagnetic also known as lifting electromagnet and electromagnetic crane, is mainly used for lifting magnetic materials such as iron and steel in industries such as metallurgy, mining, machinery and transportation. With special magnetic circuit design, the air gap magnetic density is large. Aluminum wire is used for coil, and rolled high manganese steel plate with good wear resistance and impact resistance is used for coil protection. Light weight, low energy consumption, large lifting capacity and long service life. The insulation structure is reasonable. The insulation treatment adopts vacuum drying and vacuum glue filling, which improves the electrical and mechanical properties of the coil. The heat resistance grade of insulating materials can reach special grade C. The constant voltage control mode is usually adopted. If the forced excitation control mode is used, the lifting capacity can be further improved. Simple structure, safe and reliable, suitable for all kinds of lifting equipment
Electromagnetic Lifter Technical Parameters
5000kg 1tone 10 ton lifting electromagnet metal plate magnetic lifter
* Whole set: Electro-magnet chuck,rectifier,cable drum jigger,cable connector,wireless remote control.
* Complete close structure: use fully sealed structure, high humidity proof.
* Great suction, low energy consumption:optimal design by the computer ,seasonably structured,light weight,great suction,low energy consumption.
* Long service life: magnet exciting coil by the special craft processing, improving the electrical performance and mechanical property. Thermal rating of Insulation material reach C grade.
* Energy efficiency: usually use constant voltage, also choose strong excitation control (DC-290V/220V) and constant current power.It can improve lifting force, save energy and improve economic performance.
* Easy to install,operate and maintain.

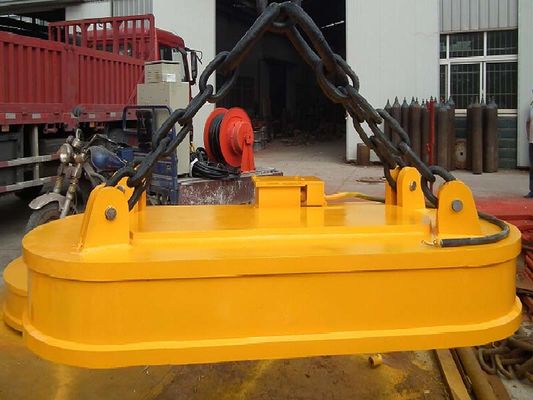

Electromagnetic Lifter Images
