Product Details:
|
Name: | Single Girder Bridge Crane | Feature: | Overhead Crane |
---|---|---|---|
Machinery Test Report: | Provided | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Ge |
Rated Lifting Moment: | 10kn-200 Kn | Span: | 3-40m |
Current Overload Protection System: | Included | Lifting Mechanism: | Wire Rope Electric Hoist |
Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 12 Months |
Main Electrical Parts: | Schneider | Color: | Clients' Requirments |
High Light: | Overhead Traveling Crane 200Kn,single girder bridge crane 200Kn,10ton Single Girder Overhead Traveling Crane |
10 Ton Single Girder Overhead Traveling Crane 200Kn
Single Girder Overhead Traveling Crane Information
Single Girder Overhead Traveling Crane Parameter
Capacity | t | 1,2,3,5,10 | 16,20 | |
Span | m | 7.5-22.5 | ||
Lifting height | m | 6,9,12,18,24,30 | 12,18,24,30 | |
Speed | Lifting | m/min | 8,8/0.8,7/07 | 3.5,3.5/0.35 |
Cross travel | m/min | 20,30 | 20,30 | |
Long travel | m/min | 20,30,45,60,75 | ||
Electric hoist | type | CD/MD | CD/MD/HC | |
Working duty | A3 | A3 | ||
Power supply | AC | 380V/50HZ/3P |
380V/50HZ/3P |
Single Girder Overhead Traveling Crane Features
1). Small structure,easy installation and maintenance;
2). Widely used in different places for hoisting such as factories,warehouses and material yards;
3). Low noise, soft starting and stopping ;
4). Safe and reliable operation ;
5). Strong box type,welding by machine hand.;
6). Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control;
7). Heavy duty slipring motor,Or Sq.cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running
8). Siemens main electric parts are used for durable and safe operation.;
9). Prohibited to use in the environment with inflammable,explosive and corrosive media.

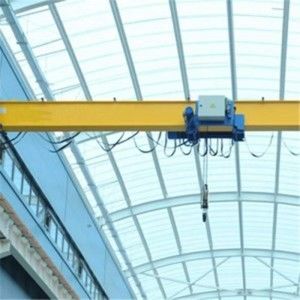

Single Girder Overhead Traveling Crane Images
