Product Details:
|
| Key Words: | Grab | Applicable Industries: | Farms, Printing Shops, Machinery Repair Shops |
|---|---|---|---|
| Product Name: | Orange Peel Grab Bucket | Color: | Red Yellow Or Customized |
| Main Electrical Parts: | Schneider | Application: | Scraps Material Handling |
| Other Name: | Electric Six Petals Grab | Volume: | 0.5~20 (m³) |
| High Light: | 17m3 Garbage Grab,Scrap Metal Grab 12m3 |
||
Customized Color Crane Iron Scrap Metal Grab 12m³ 17m³ Garbage Grab
Orange Peel Grab Bucket Description
Crane Iron Scrap Grab Hydraulic Electric Grab Bucket Orange Peel Grapple for Garbage Scraps is specially applied in charging & discharging of sand, waste steel & big stones.
These grabs cab be executed with open or closed shells depending on the job & the type of material to be handled. The grabs are manufactured of high wear resistant steels. All bearings are heavy duty & sealed for high performance.
The grabs can also be designed with the hydraulic rotator for 360 Deg. Rotation
Orange Peel Grab Bucket Technical Parameters
| Model |
Volume (m³) |
Grab self-weight (t) |
Using crane ton (t) |
Motor power (KW) |
Operating Pressure bar |
Close time (S) |
| DYZ3(0.5) | 0.5 | 1.5 | 3.2 | 11 | 180 | 10 |
| DYZ3(0.6) | 0.6 | 1.7 | 3.2 | 11 | 180 | 11 |
| DYZ5(0.8) | 0.8 | 2.0 | 5 | 15 | 180 | 13 |
| DYZ5(1.0) | 1.0 | 2.5 | 5 | 15 | 180 | 14 |
| DYZ10(2) | 2 | 4.2 | 10 | 22 | 200 | 16 |
| DYZ52.5) | 2.5 | 2.6 | 5 | 18.5 | 180 | 17 |
| DYZ10(3.0) | 3.0 | 3.8 | 10 | 18.5 | 180 | 20 |
| DYZ10(5.5) | 5.0 | 4.3 | 10 | 22 | 200 | 19 |
| DYZ16(2.5) | 2.5 | 5.5 | 16 | 30 | 200 | 16 |
| DYZ16(8.0) | 8.0 | 5.6 | 16 | 30 | 200 | 19 |
| DYZ20(4.0) | 4.0 | 7 | 20 | 37 | 200 | 17 |
| DYZ20(12) | 12 | 8 | 20 | 37 | 200 | 25 |
| DYZ25(17) | 17 | 9 | 25 | 45 | 200 | 26 |
| DYZ30(20) | 20 | 11 | 30 | 45 | 200 | 28 |
Orange Peel Grab Bucket Main Features
Overhead Traveling Crane Price Marine Crane Hydraulic Cargo Clamshell Grab Bucket
1, excavation of foundation pit, excavation of deep foundation pit and loading of mud, sand, coal and gravel.
2, it is especially suitable for digging or loading on the side of a ditch or restricted space.
3. It is suitable for loading and unloading of ships, trains and cars.
Orange Peel Grab Bucket Application
QZ 5T,10T,15T Model Motor-driven Double Beam/Girder Grapple Crane is widely used to transport, assemble, load and unload incompact goods in mine, port, factory, workshop, warehouses, and goods yard, etc. Grab's open direction is divided into parallel and vertical with main beam and the grab can be double or four wire rope, mechanical or electric hydraulic type according to different work duty and materials.

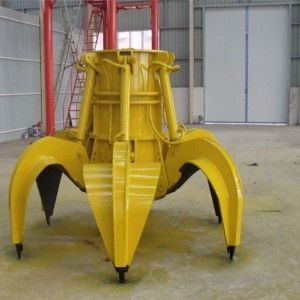

Orange Peel Grab Bucket Images
