Product Details:
|
| Name: | European Type Gantry Crane | Material: | Q235B |
|---|---|---|---|
| Rated Load: | 1-500T | Lifting Height: | 6/9/12/18/24/32m |
| Span: | 5-40m | Voltage: | 380V 50HZ 3P Or Customized |
| Working Duty: | ISO A5/ FEM 2M | Control Method: | Remote Control/Pendent Line/Cabin |
| Color: | Customized | Usage: | Lifting Equipment |
| High Light: | European Style Single Girder Gantry Crane,Single Girder Gantry Crane BS Standard,European Style 500 ton gantry crane |
||
Single Girder European Style Gantry Crane FEM DIN BS Standard
Single Girder European Style Gantry Crane Information
European Design Gantry Crane used in Europe FEM advanced design and manufacturing standards. Nominal weight of 3t ~ 320t. Compared with ordinary MG, its main features is the use of a European standard car configuration, the whole car reducer hardened, driven by triple driving, vehicle use PLC + inverter control technology, comprehensive improve product performance, at the same time reduce the overall weight more than 15 percent, big wheels relieve pressure from 10 to 20%, widely used in factories, garages, warehouses and other places for cargo lifting.
Single Girder European Style Gantry Crane Technical Parameters
| Lifting capacity | 3t | 5t | 10t | 20t | 32t |
| Span | 7.5~35m | ||||
| Lifting height | 6/9/12/18/24/32m | ||||
| Lifting speed | 5/0.8m/min (double speed) | ||||
| Long traveling speed | 3-30m/min (by VDF) | ||||
| Cross traveling speed | 2-20m/min (by VDF) | ||||
| Power supply | AC 380V 50Hz or customized | ||||
| Working duty | ISO A5/ FEM 2M | ||||
Single Girder European Style Gantry Crane Features
1. High reliability, safety, free maintenance rate
2. Work duty: FEM2M, M5
3. Protection class: IP55
4. Insulation class: F
5. Modular design concept
6. Three-in-one gear motor
7. Low headroom and compact design
8. Continuing rate: 60% ( for the high class motor)
9. Cooling rate: 30% than normal crane
10. Investment-saved---the workshop’s civil work cost, due to crane’s light dead weight and low wheel pressure
11. Power-saved. The total motor power is much lower than normal design

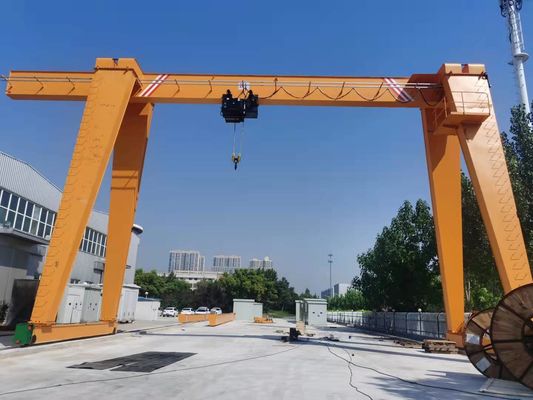

Single Girder European Style Gantry Crane Images
