Product Details:
|
| Keywords: | Double Beam Container Gantry Crane | Feature: | Gantry Crane |
|---|---|---|---|
| Application: | Port,Pier,Container Shipping | Warranty: | 1 Year |
| Lifting Mechanism: | Electric Winch Trolley | Control Method: | Cabin Control |
| Work Duty: | A5-A7 | Color: | Customized |
| Power Supply: | 380V 50Hz 3P Or Customized | Material: | Q235B |
| High Light: | 60 Ton Container Gantry Crane,Q235B 60 ton gantry crane,Q235B Container Gantry Crane |
||

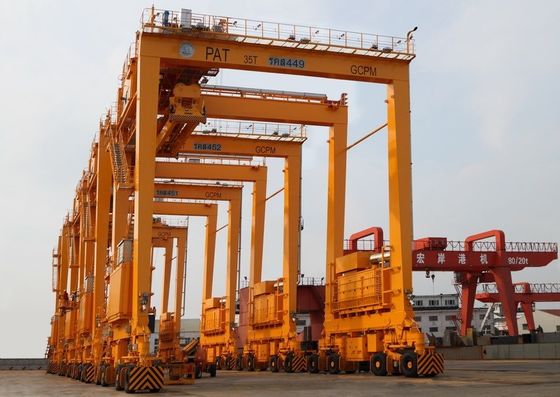

Heavy Duty 60 Ton Double Beam Container Gantry Crane Port Crane
Double Beam Container Gantry Crane Introduction
Rail Mounted Container Gantry Crane(RMG) is a kind of rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers. Its provision of power is offered by cable reel. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track mounted on gantry beam is capable to serve among legs. The crane is able to make straight movement along rails.
Double Beam Container Gantry Crane Specification
| Lifting weight(t) | 10 | 16 | 20/10 | 32/10 | 36/16 | 50/10 | |
| Span (m) | 18~35 | 18~30 | 18~35 | 18~35 | 22~35 | 35 | |
| Lifting height (m) | Main hook | 11.5 | 10.5/12 | 10.5 | 11.5 | 11.5 | 12 |
| Aux. hook | 11 | 12 | 12 | 13 | |||
| Speed (m/min) | Main hook | 8.5 | 7.9 | 7.2 | 7.5 | 7.8 | 6 |
| Aux hook | 10.4 | 10.4 | 10.5 | 10.4 | |||
| Trolley travel | 43.8 | 44.5 | 44.5 | 41.9 | 41.9 | 38.13 | |
| Crane travel | 37.6/40 | 38/36 | 38/36 | 40 | 40/38 | 38 | |
| Working duty | A5 | ||||||
| Power source | Three-phase AC. 127~480V 50/60Hz | ||||||
Double Beam Container Gantry Crane Advantage
1.Double box beam with steel legs moving through the ground beam as crane travelling system
2.The camber of main beam will be designed as Span*1-1.4/1000.
3.Steel Material: Q235 or Q345
4.Shot-blasting Sa2.5 for main girder and supporting beam
5.Epoxy zinc rich high quality painting.
6.Electrification and outfitting
7.Conductor power supply: Cable Reel or busbar.
8.Frequency conversion, double speed, single speed, and All hoist and crane movements are independent an d can be run simultaneously different design duo to meet crane applications
9.Whole layout provides good protection against special working environment. Such as gas workshop
Double Beam Container Gantry Crane Details
