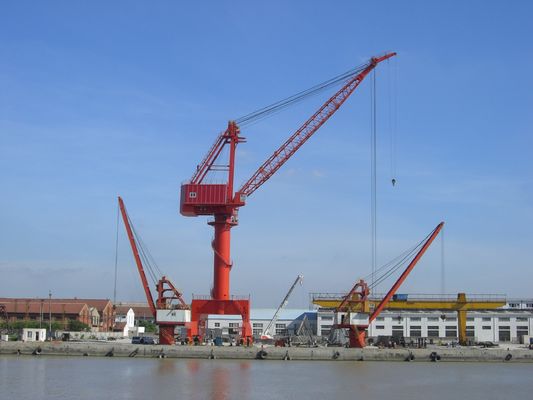

5-150 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6

5-150 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6
5-150 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6 5-150 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6 5-150 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6 5-150 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6 5-150 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6

Large Image :  5-150 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6

Product Details:
Place of Origin: CHINA
Brand Name: KORIGCRANES
Certification: CE,SGS,ISO
Model Number: MQ
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD250000~USD 3000000
Packaging Details: Electrics parts, motor, reducer, wire rope, etc are packed in wooden box;
Delivery Time: 4-6 months
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 10sets per month

5-150 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6

Description
Product Name: Single Jib Harbour Portal Crane Keywords: Harbour Portal Crane
Capacity: 5-150tons Lifting Height: 10~50m
Working Radius: 9~70m Inverter,PLC Brand: Siemens, Schneider,ABB
Crane Management System: Included Automatic Operation: Optional
Purpose: Load/unload General Cargo,container,bulk Cargo, Maintenance Etc. Application: Jetty,port, Shipyard
High Light:

150tons Portal Harbour Crane

,

150tons single jib portal crane

,

Portal Harbour Crane A6

5-150 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6



Harbour Portal Crane Description



Single Boom Portal Jib Crane is widely used in ports, shipyard,jetty for load, unload and transfer the general cargo,container,bulk cargo, and  to the ship in high efficiency and also could be for ship maintenance purpose. It could be equipped with hook,grab bucket and container spreder beam.



Harbour Portal Crane Features



Single boom portal jib crane, also called “Level luffing portal crane” is mainly used for loading and unloading of general cargo or bulk cargo in port, jetty, river terminal, or ship building in shipyard. Its boom is single-lattice type.This model adopts two types luffing method:Rack and pinion luffing and Wire rope luffing (compensation for multiple pulley blocks). It can carry load luffing and make horizontal displacement. The crane can rotate 360°free with the combined action of lifting and luffing, and it runs smoothly.

The crane could use hook and grab, two purpose. Hook for general cargo load/unloading and grab is used for bulk cargo handling such as Wheat, corn, fertilizer, salt,sand, iron ore etc.The spreader beam is for load/unloading 20ft/40ft/45ft container. The work efficiency is high.



Harbour Portal Crane Technical Parameter Table





Unit

MQ530

MQ1033

MQ1633

MQ4030

MQ6030

MQ8040

Capacity

Ton

5

10

16

40

60

80

Working duty

A

A6

A6

A6

A6

A6

A6

Working radius

M

8.5-30

9-33

9-33

11-30

10-30

11-40

Lifting height above rail

M

25

25

25

25

30

40

Lifting height below rail

M

-15

-15

-15

-15

0

-15



Speed

Lifting speed

m/min

50

50

50

20

12

8

Luffing speed

m/min

50

50

50

24

15

15

Slewing speed

r/min

1.7

1.5

1.5

1.0

0.4

0.3

Traveling speed

m/min

25

25

25

25

25

25

End slewing radius

M

7.50

7.68

7.60

7.80

7.8

10.5

Gauge× Base

M

10.5×10.5

10.5×10.5

10.5×10.5

10.5×10.5

12×13

12×13

Max.wheel load

KN

185

225

250

250

250

280

Wheel Qty.

PCS

12

20

20

32

32

40

Power source

380V 50HZ 3Ph

6KV,3Ph

10Kv,3Ph

10KV,3Ph



Features of Portal Jib Crane



1. Sling spreader can be grab and hook, good adaptability, wide application;

2. All mechanism are interlock to ensure operation safety;

3. 360° slewing, wide working scope;

4. PLC control, AC frequency speed control, stable and reliable running;

5. Remote control in control room and automatic operation are available according to the requirement;

6. Adequate protection devices, communication and lighting system.

7.Crane Monitoring Management system (CMS) to monitor each mechanism working condition and fault diagnose



Harbour Portal Crane Images



portal jib crane

Portal jib crane boom
