0.5 - 15Ton EOT European Type Low Headroom Single Beam Overhead Crane

0.5 - 15Ton EOT European Type Low Headroom Single Beam Overhead Crane
0.5 - 15Ton EOT European Type Low Headroom Single Beam Overhead Crane 0.5 - 15Ton EOT European Type Low Headroom Single Beam Overhead Crane

Large Image :  0.5 - 15Ton EOT European Type Low Headroom Single Beam Overhead Crane

Product Details:
Place of Origin: China
Brand Name: KRG
Certification: CE ISO
Model Number: HD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2000-USD10000
Packaging Details: Export packaged wooden box for hoist, plastic cloth for girder.
Delivery Time: 20-30 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 sets/per month

0.5 - 15Ton EOT European Type Low Headroom Single Beam Overhead Crane

Description
Productr Name: European Single Beam Bridge Crane Lift Capacity: 0.5 Ton~15 Ton
Lift Speed: 0.8/5m/min Span: 7.5-31.5m
Work Duty: A5/FEM M2 Power Supply: 400v 50hz 3phrase
Feature: European Type, Low Headroom, Light Weight Application: Workshop, Warehouse
Condition: New Warranty: 1 Year
Crane Color: Customized Certification: CE GOST ISO SGS
High Light:

15Ton low headroom overhead crane

,

15Ton Single Beam EOT Crane

,

Single Beam EOT Crane 3phrase


0.5 - 15 Ton Low Headroom Overhead Traveling Crane Single Beam Bridge Crane

Low Headroom Overhead Traveling Crane Light duty & modular design

1.The overall height of the crane can be lower 20%~25% of the tradition crane.
2.The dead load reduced by 20%~30%.
3.The maximum wheel pressure can deduct by 15% ~ 20%
4.The small limit dimension can increase the working area.
5.With the lightness structure it can cut the construction costs.
6.Each spare parts on the crane can be design to series standard modulus , it can lavish the product combination
7.Its independent modulus is convenient for the transportation.
8.Standard modulus production, it can ensure stability quality of the product, it can shorten the delivery period.

Low Headroom Overhead Traveling Crane Intelligentialize

1. World’s leading electrical anti- sway technology can be installed on the crane to achieve precise positioning.
2. Advanced electrical control technology can achieve the semi-automatic and automatic control lifting, so that the crane becomes " Lifting robot ."


Capacity(t)

Span (m)

Lifting Height
(m)

Work Duty

Lifting Speed
(m/min)

Hoist Travelling Speed
(m/min)

Crane Travelling Speed
(m/min)

Rail

1

7.5~25.5

6~12

A5/2m

0.8/5

2~20

3~30

P24

2

6~12

0.8/5

P24

3.2

6~12

0.8/5

P24

5

6~12

0.8/5

P24,P30

10

6~12

0.8/5

P30

16

9~12

0.66/4

P43

20

9~12

0.66/4

P43

Note: when the span or lifting height is beyond the data in the table, please contact us.


Low Headroom Overhead Traveling Crane Features

1. Modular C-design, has compact structure, low headroom, stable lifting operation, accurate positioning
2. Safe working load capacities up to 32 tons
3. Standard hoisting and cross travelling duty is M5.
4. Standard dual hoisting speeds, variable frequency drive(VFD) for cross travelling.
5. Control method by wire pendant connection or radio remote control.


Low Headroom Overhead Traveling Crane Details

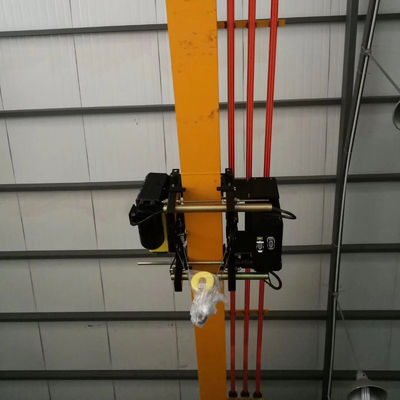

0.5 - 15Ton EOT European Type Low Headroom Single Beam Overhead Crane 0
0.5 - 15Ton EOT European Type Low Headroom Single Beam Overhead Crane 1
