Product Details:
|
| Name: | Marine Deck Crane | Capacity: | 0~80T |
|---|---|---|---|
| Working Radius: | 3~35m | Lifting Height: | 30m |
| Application: | Ship,oilwell Platform | Purpose: | Lifting General Cargo, People,oil Hose On Ship |
| Classifiation Certif: | BV,ABS,CCS ETC. | Heel: | 5° |
| Trim: | 2° | Color: | According To Client's Requirement |
| Slewing Angle: | 360° Free Rotation | Warranty: | 2 Years |
| High Light: | 80T Marine Deck Crane,Marine Deck Crane With BV,80T Stiff Boom Crane |
||
0 ~ 80 Ton Hydraulic Stiff Boom Marine Deck Crane With BV 360° Slewing
Hydrauilc Stiff Boom Marine Deck Crane Information
The hydrauilc stiff boom marine deck crane is installed on ship and oilwell platform to lift general cargo,people,oil hose etc.
It is composed by boom, slewing bearing, cabin, column, hydrauilc system, winch.
Hydrauilc Stiff Boom Marine Deck Crane Technical Parameter Table
| Rated load (SWL) |
Max.work radius |
Lifting speed M/min |
Slewing speed (r/min) |
Luffing time (m) |
Lifing height (m) |
Rotation(°) | Allowing inclination (trim.heel) |
Power (KW) |
| 0.5 | 5-12 | 15 | 1 | 60 | 30 | 360° | 2°/5° | 7.5 |
| 1 | 6-12 | 15 | 1 | 60 | 30 | 360° | 2°/5° | 11 |
| 1.5 | 6-14 | 15 | 1 | 60 | 30 | 360° | 2°/5° | 11 |
| 2 | 8-16 | 15 | 1 | 60 | 30 | 360° | 2°/5° | 15 |
| 3 | 8-18 | 13-15 | 0.8 | 70 | 30 | 360° | 2°/5° | 22 |
| 5 | 10-20 | 12-15 | 0.75 | 80 | 30 | 360° | 2°/5° | 37 |
| 8 | 12-20 | 10-15 | 0.75 | 100 | 35 | 360° | 2°/5° | 55 |
| 10 | 12-20 | 10-15 | 0.7 | 100 | 35 | 360° | 2°/5° | 75 |
| 15 | 12-22 | 10-15 | 0.6 | 110 | 35 | 360° | 2°/5° | 90 |
| 20 | 16-25 | 10-15 | 0.6 | 120 | 40 | 360° | 2°/5° | 125 |
Hydrauilc Stiff Boom Marine Deck Crane Description
The hydraulic marine deck crane is a hydraulic slewing and luffing crane. From the cylinder, the fuel tank, crane, hoisting mechanism and the amplitude bodies, lifting ,rotating, hydraulic luffing are driven from the flexible and reliable action, easy to operate, uses a wide range of characteristics such as lifting items ship ideal for lifting equipment. Suitable for operations at sea.
Features of hydrauilc stiff boom marine deck crane
1. Hydraulic system are from importing, which guarantee the top quality;
2. Load test before delivery to issue test certificate;
3. 360° slewing;

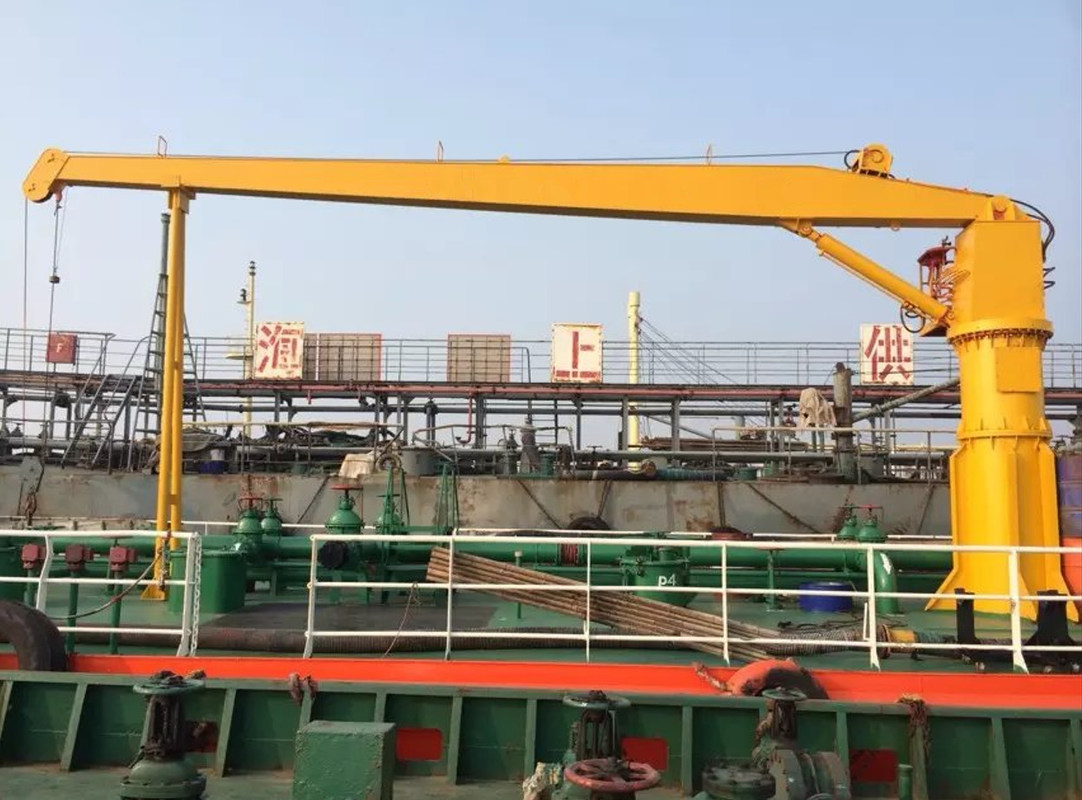

Hydrauilc Stiff Boom Marine Deck Crane Photos
