0~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC

0~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
0~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC 0~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC 0~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC 0~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC 0~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC 0~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC

Large Image :  0~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC

Product Details:
Place of Origin: CHINA
Brand Name: KOREGCRANES
Certification: ISO,CE,SGS,CU-TR
Model Number: JQ
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 50000~USD 600000
Packaging Details: Electrics parts, motor, reducer, wire rope, etc are packed in wooden box;
Delivery Time: 1-3months
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20sets per month

0~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC

Description
Capactiy: 0~2000tons Application: Highway,bridge Consturction
Span: 20~60m Lifting Mechanism: Electric Winch
Export Country: Thailand,Philippines,Saudi Arabia,Malaysia,Bangaldeshm,Pakistan,etc. Industry Voltage: 380V 50HZ 3Phase
Color: According To Client's Requirement
High Light:

2000tons Beam Launcher Crane

,

Beam Launcher Crane 380VAC

,

2000tons launcher gantry crane

Beam Launching Crane Segment Beam Erecting Machine



Beam launching crane segment beam erecting machine is widely used in highway, railway bridges to the construction site of bridge construction, its main function is to transport and lay down the precated concrete beam or segment on the pier.It has high requirement for safety.



Description



The beam launching crane segment beam erecting machine consists of main girder, crane, front legs, rear legs, front leg cylinder, rear leg cylinder and the transverse connection of front, middle, rear legs. The control part is composed of hydraulic system and electric control system. The bridge girder erection machine is characterized by reasonable compact structure and convenient installation, the main standard girder is connected by pin connection. The double girder structure is connected between the two frame girders by welded pipe.



The beam launching crane not only can meet the standard set up, but also it can meet the cross curve erection, variable span erection, span continuous beam, composite beam, continuous steel etc. In addition to bridge erection, simply supported girder erection and point lifting, it is characterized by good stability, high efficiency, safety and reliability, variable span convenient adjustment and convenient operation and etc.



Technical Parameter Table



Item Data
Capacity 30-500t
Bridge radius 20-50m
Slope below 1/20
Turning radius 200-350m
Angle of skew bridge 0-15°
Shop travelling speed 2-45m/mim
Crane travelling speed 2-50m/min
Power source as your demands
Other According to your specific usage, specific model and design will offer



Features of Beam Launching Crane



1.Safe and reliable .

2.Crane traveling limit switch.
3.Overload protection device.
4.Lifting height limit device.
5.Voltage lower protection function .
6.Phase sequence protection function.
7.The machine can accomplish the build of girders with carrying and erection at the same time.
8.Rain cover for outside hoist, driving units, electric cubicle.
9.Warining indicator : flashing nights and warning sounds.

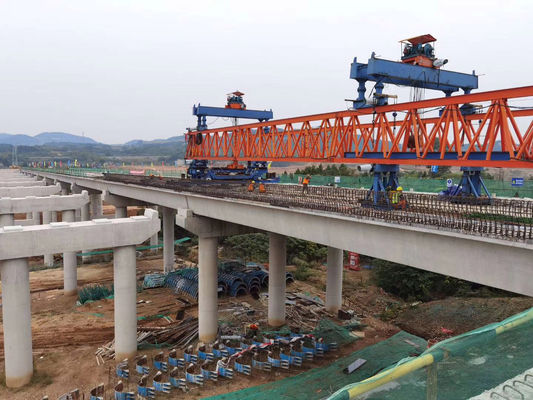

Beam Lauching Crane Photo:



0~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC 00~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC 10~2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC 2
