Product Details:
|
| Product Name: | 50 Ton Double Beam Ladle Overhead Crane For Steel Works | Main Lifting Capacity: | 50 Ton |
|---|---|---|---|
| Span: | 16.5~34.5 M | Ambient Temperature: | -20℃ To +60℃ |
| Control: | Cabin | Work Duty: | A6~A8 |
| Application: | Steel Making | Lifting Speed: | 0-6.3 M/min(Variable Frequency Drive) |
| Cross Traveling Speed: | 0-25 M/min(Variable Frequency Drive) | Longitude Traveling Speed: | 0-63 M/min(Variable Frequency Drive) |
| High Light: | Steel Plant Crane 10m,50 ton overhead crane High Efficiency,Silent Steel Plant Crane |
||
Silent 50 Ton Overhead Steel Plant Crane High Efficiency 10m~20m Lifting Height
Overhead Steel Plant Crane Description
Ladle cranes (Ladle Handling Cranes) are designed to be operated efficiently, uninterruptedly and safely in continuous use. The design conforms to the requirements of international standards.
Because of a higher risk level, special safety features are designed for the ladle cranes that transport molten metal. The main hoist mechanism includes four independent rope reevings, double service brakes on primary shafts, and backup brake acting on the rope drum. Rope equalizer beams are provided with a dampening unit to slow down equalizer beam tilting in case of wire rope failure. An upper emergency stop limit switch is also used in the main hoist. In addition to this overload protection, the ‘emergency stop’ system bypassed from PLC, derailment supports, main hoist overspeed supervision, and end limit switches are automatically standard features of the equipment.
Overhead Steel Plant Crane Specification
|
Lifting Capacity |
t |
10 |
16 |
20 |
25 |
32 |
50 |
74 |
|
Span |
m |
16.5~34.5 |
||||||
|
Lifting Height |
m |
10~20 |
||||||
|
Crane Duty |
GB |
A6~A8 |
||||||
|
Lifting Speed |
m/min |
0~8 |
0~8 |
0~8 |
0~8 |
0~8 |
0~6.3 |
0~5 |
|
Cross Travel Speed |
m/min |
0~25 |
0~25 |
0~25 |
0~25 |
0~25 |
0~25 |
0~25 |
|
Long Travel Speed |
m/min |
0~63 |
0~63 |
0~63 |
0~63 |
0~63 |
0~63 |
0~63 |
|
Control Method |
/ |
Automatic, Manual, Semi-Automatic |
||||||
Overhead Steel Plant Crane Characteristics
1. High efficiency with smooth and silent running.
2. Suitable for high lifting capacities and heavy duty class
3. Minimum investment requirements for maximum space optimization
4. Safe and smooth running with safety accessories
5. Reasonable, compact and beautiful structure
6. Smooth starting and stopping performance
7. Low noise, commodious cabin and good view space
8. Maintenance-free for lifting mechanism and excellent changeability for spare parts
9. Energy saving with minimum possible power
10. All electric parts from world famous brands
11. 2 years spare parts to avoid any delays once breaking down occurs
12. Suitable for industry power supply around the world
13. Precise and experienced designing to save each coin for clients
14. Overloading, over-volt, over-current protections included to ensure 100% safety
15. Accurate designing and advanced device to guarantee synchronous running in each side

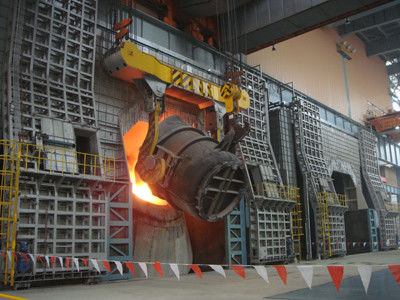

Overhead Steel Plant Crane Photos
