|Product Name:||20 Ton Double Girder Metallurgical Crane||Main Lifting Capacity:||20 Ton|
|Span:||16.5~34.5 M||Ambient Temperature:||-20℃ To +60℃|
|Application:||Steel Making||Lifting Speed:||0-5 M/min(Variable Frequency Drive)|
|Cross Traveling Speed:||0-25 M/min(Variable Frequency Drive)||Longitude Traveling Speed:||0-63 M/min(Variable Frequency Drive)|
Steel Plant Crane 5m/Min,
Steel Plant Crane 20Ton,
Double Girder Crane 5m/Min
Double Girder Metallurgical Steel Plant Crane 20 Ton 0 -5m / Min Lifting Speed
20 Ton Double Girder Metallurgical Crane Description
Metallurgical cranes are special cranes that are carefully developed and produced for the special environment of metal metallurgy manufacturing, and play an important role in metal smelting, thermal processing, casting and other operations.
The metallurgical crane is the main equipment in the steelmaking and continuous casting process. Mainly used for lifting and transferring liquid ladle.
From the overall structure, it can be divided into double-beam double-track, four-beam four-track, four-beam six-track and other types. The first two are generally used for medium and large tonnage casting cranes, and the third type is generally used for extra-large tonnage casting cranes.
The casting cranes designed and manufactured by our company have the characteristics of advanced technology, novel structure, safe and reliable, economical and durable, and simple maintenance.
20 Ton Double Girder Metallurgical Crane Specification
|Cross Travel Speed||m/min||0~25||0~25||0~25||0~25||0~25||0~25||0~25|
|Long Travel Speed||m/min||0~63||0~63||0~63||0~63||0~63||0~63||0~63|
|Control Method||/||Automatic, Manual, Semi-Automatic|
20 Ton Double Girder Metallurgical Crane Features
1. Rotatable spreader
2. The hook distance of the gantry hook is variable
3. Load weighing and display
Application Of Metallurgical Cranes
The application of metallurgical cranes is generally applicable to the ambient temperature of -10℃ to +60℃, and the radiation temperature of the molten metal lifted to the forging hooks and plate hooks does not exceed 300℃.
Working level: A7, A8 for relatively busy metallurgical foundry
20 Ton Double Girder Metallurgical Crane Characteristics
1. Heavy duty
2. Long service life
3. Redundancy design, more safe
4. Stepless control, smooth movements
5. Heat resistance, dust proof
6. PLC control

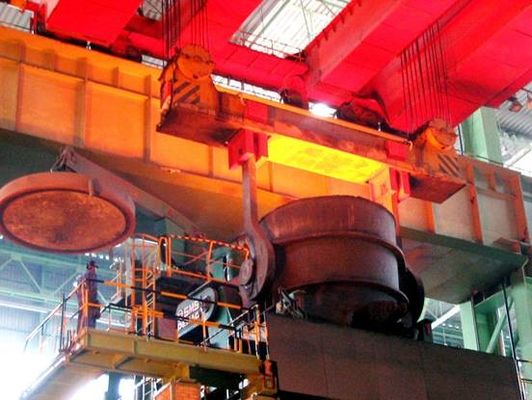

20 Ton Double Girder Metallurgical Crane Photos
