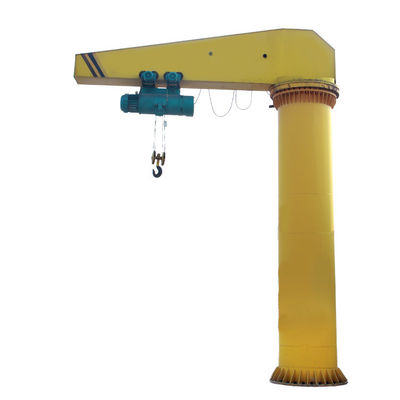

Product Details:
|
| Name: | 10000 Kg Floor Mounted Jib Crane | Lifting Capacity: | 10000 Kg |
|---|---|---|---|
| Lifting Speed: | 7 M/min | Cross Traveling Speed: | 20 M/min |
| Rotation Speed: | 0.5 R/min | Control: | Pendant Control Or Remote Control |
| Color: | As Per Your Requirements | ||
| High Light: | 10000kg Industrial Jib Crane,10000kg floor mounted jib crane,Medium Sized Industrial Jib Crane |
||
High quality workshop jib crane Jib Crane:
Jib Crane is a kind of small and medium-sized lifting equipment with the recent development.Its unique structure, safe and reliable.With high efficiency, energy conservation, the provincial time, effort, and flexible and so on. And it can operate freely in 3D space,and it can show its superiority more especially when its working in the short-range and intensive lifting occasions.Widely used in workshops, warehouses, docks and other fixed place.
Compact Design:
The advanced design idea gives the crane light structure and excellent performance, at the same time narrows the hook operation distance in the maximum, and improves the space utilization rate effectively. So it can reduce your workshop investment costs and bring more investment returns.
Smooth, Fast Loading
The standard configuration of the crane are the trolley and crane both having step-less frequency conversion control system, with features of braked stably, accurate location, and reliable performance, which make traveling steady, positioning quick, solving the problem of swing of goods. Safer, Reliable, Using Free Maintenance Design The crane used the best technology in the whole process shows its superiority, especially in the frequent operations. The perfect braking system improves safety and reliability a lot, which can be adjusted by itself with dustproof design, and it can be used more than 1 million times. Hardening and polishing the tooth surface will make sure the crane operate without trouble.
Excellent Performance
As an important logistics equipment, if the crane is out of order, it will cause great damage. So our products always having high quality will be your best choice.
Jib Crane Feature
1. Rated Lifting capacity: 0.5~20t.
2. Arm length: 2~10m (Can be designed by customers)
3.Two types : BZ model(light medium) and BZD model(heavy duty medium)
4. Working Temperature: -25~+40°C
5. Lifting mechanism: Electric hoists or manual hoist
6. Slewing Mechanism: Electric motor or Manual control
7. Main Material: Q235B Mn Steel
8. Slewing angle are 90, 180, 270, 360 degree is optional
Specification
| Lifting Capacity | t | 1 | 2 | 3 | 5 | ||||
| Lifting Height | m | 5 | 5.5 | 5 | 5.5 | 4.5 | 5 | 4.5 | 5 |
| Work Radius | m | 4 | 4.5 | 4 | 4.5 | 5 | 5.5 | 5 | 5.5 |
| Crane Duty | GB | A3 | |||||||
| Lifting Speed | m/min | 8 | |||||||
| Traveling Speed | m/min | 20 | |||||||
| Rotation Speed | m/min | 0.5 | |||||||
| Rotation Angle | ° | 180, 270, 360, Adjustable | |||||||
Shpping Photos
