Product Details:
|
| Keywords: | Mounted Jib Crane | Type: | Wall Mounted JIB Crane |
|---|---|---|---|
| Capacity: | 0.5-10t | Working Radius: | 2.5-15m |
| Lifting Height: | 6-35m | Working Duty: | A3/A4 |
| Hoist Model: | Wirerope Hoist/ Chain Hoist | Material: | Q235B |
| Travelling Speed: | 0~20m/min | Warranty: | 1 Year |
| Color: | Customized | Power Source: | AC 220-415V 50Hz/60Hz |
| High Light: | 35m Post Mounted Jib Crane,35m Workshop JIB Crane,Post Mounted Jib Crane Remote Driven |
||
6 - 35m Post Mounted Jib Crane Workshop JIB Crane Wireless Remote Motor Driven
Wall Mounted JIB Crane Information
Jib crane work for light intensity, crane by post, rotating arm rotation drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects. Jib crane for hollow steel structure, light weight, big span, lifting weight, economy and durable.Jib Crane is a new generation of the hoist equipment developed to meet the requirement of modernized production. And Jib Crane adopts West Germany technology , has the features of reasonable structure,easy operating and high efficiency, etc . It is widely used in mines, workshop, warehouse , wharf,etc.
Wall Mounted JIB Crane Parameter
Rated Capacity | t | 0.5 | 1 | 2 | 3 | 5 | 10 |
Beam length | mm | 2000~6000 | |||||
Lifting height | mm | 2000~6000 | |||||
Lifting speed | m/min | 8; 8/0.8 | |||||
Travelling speed | m/min | 10; 20 | |||||
Turning speed | r/min | 0.76 | 0.69 | 0.6 | 0.53 | 0.48 | 0.46 |
Turning degree | degree | 360° | |||||
Duty Class | A3 | ||||||
Power source | 380V, 50HZ, 3 phase (or other standard) | ||||||
Working temperature | -20~42°C | ||||||
Control model | Pendant pushbutton control or remote control | ||||||
Wall Mounted JIB Crane Advantage
1. Installation with high strength bolt connection;
2. Convenient in operation,safe and turn to flexible;
3. Low noise,commodious cabin and good looking;
4. High quality and efficiency, competitive price;
5. Reasonable and simple whole structure,Light self-weight, conform to the state standards;
6. Inexpensive handling systems doesn't require modification of the building structure around.

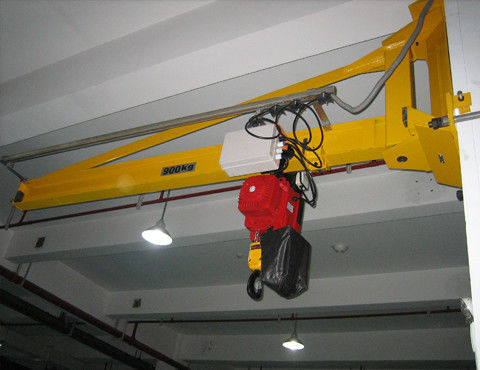

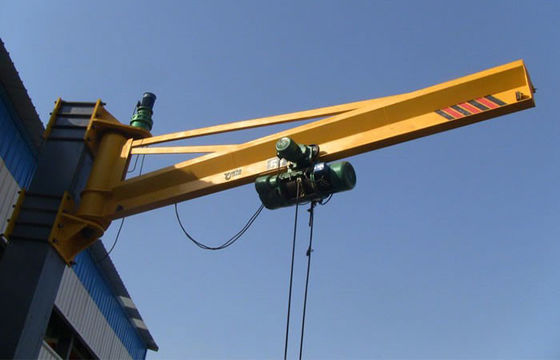

Wall Mounted JIB Crane Photos
