Product Details:
|
| Name: | Overhead Steel Plant Crane For Steel Mill Workshop | Main Lifting Capacity: | 200 Ton |
|---|---|---|---|
| Span: | 16.5~34.5 M | Ambient Temperature: | -20℃ To +60℃ |
| Control: | Cabin | Work Duty: | A6~A8 |
| Application: | Steel Making | Lifting Speed: | 0-5 M/min(Variable Frequency Drive) |
| Cross Traveling Speed: | 0-25 M/min(Variable Frequency Drive) | Longitude Traveling Speed: | 0-63 M/min(Variable Frequency Drive) |
Double Girder Overhead Steel Plant Crane For Steel Mill Workshop
Overhead Steel Plant Crane Description
The high-temperature casting ladle crane is composed of box bridge, hook, crane operating mechanism and electrical system. The main hook adopts the carrying tool as the hoisting device for hoisting the ladle, and the auxiliary hook cooperates with the main hook to complete the auxiliary lifting such as pouring of molten steel and steel slag.
There are two types of foundry cranes according to two different lifting capacity ranges: QDY series bridge type foundry cranes and YZ series ladle bridge type cranes.
Overhead Steel Plant Crane Specification
| Lifting Capacity | t | 10 | 16 | 20 | 25 | 32 | 50 | 74 |
| Span | m | 16.5~34.5 | ||||||
| Lifting Height | m | 10~20 | ||||||
| Crane Duty | GB | A6~A8 | ||||||
| Lifting Speed | m/min | 0~8 | 0~8 | 0~8 | 0~8 | 0~8 | 0~6.3 | 0~5 |
| Cross Travel Speed | m/min | 0~25 | 0~25 | 0~25 | 0~25 | 0~25 | 0~25 | 0~25 |
| Long Travel Speed | m/min | 0~63 | 0~63 | 0~63 | 0~63 | 0~63 | 0~63 | 0~63 |
| Control Method | / | Automatic, Manual, Semi-Automatic | ||||||
Overhead Steel Plant Crane Characteristics
1. Strong beam. The crane beam adopts welded structure. This results in lower dead weight, higher vertical and horizontal stiffness, and less wheel load
2. End car: crane travel system, motor-reducer-wheel drive system! The motor adopts a soft-start motor, which is very stable in starting
3. Long-lasting performance and high efficiency
4. The bottom of the main girder is equipped with a thermal insulation coating, which has excellent heat resistance
5. Modern cabin control with air conditioning, isolate the operator from harsh environment
6. Electrical equipment: Siemens brand or Schneider brand is adopted for electrical system
7. Long service life and less maintenance

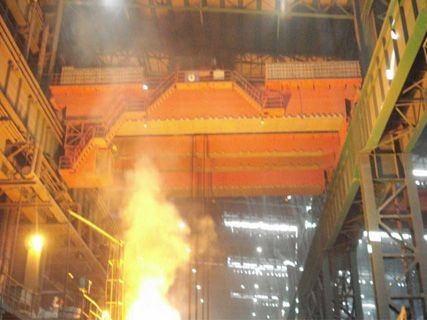

Overhead Steel Plant Crane Photos
