Product Details:
|
| Name: | Double Beam Bridge Crane With Metal Ladle Casting | Main Lifting Capacity: | 250 Ton |
|---|---|---|---|
| Span: | 16.5~34.5 M | Ambient Temperature: | -20℃ To +60℃ |
| Control: | Cabin | Work Duty: | A6~A8 |
| Application: | Steel Making | Lifting Speed: | 0-5 M/min(Variable Frequency Drive) |
| Cross Traveling Speed: | 0-25 M/min(Variable Frequency Drive) | Longitude Traveling Speed: | 0-63 M/min(Variable Frequency Drive) |
20t 25t 50t 60t 80t Double Beam Bridge Crane With Metal Ladle Casting
Metal Ladle Casting Bridge Crane Description
The high-temperature casting ladle crane is composed of box bridge, hook, crane operating mechanism and electrical system. The main hook adopts the carrying tool as the hoisting device for hoisting the ladle, and the auxiliary hook cooperates with the main hook to complete the auxiliary lifting such as pouring of molten steel and steel slag.
There are two types of casting cranes according to the range of lifting capacity: QDY series bridge casting cranes and YZ series ladle bridge cranes. The rated lifting capacity of QDY series bridge-type casting cranes is from 5 tons to 74 tons, and the rated lifting capacity of YZ-type bridge-type casting cranes is from 74 tons to 320 tons. For extra-large tonnage casting cranes, special four-girder six-track two-car cranes can be used.
Metal Ladle Casting Bridge Crane Specification
|
Item |
QDY |
YZ |
|
Loading capacity |
5 ~ 75t |
75 ~ 350t |
|
Lifting height |
customized |
|
|
Lifting speed |
Varies with lifting capacity |
|
|
Span |
10.5 ~ 31.5 m |
15 ~ 38 m |
|
Lifting mechanism |
Winch trolley |
|
|
Working class |
A7/A8 |
|
|
Working temperature |
-20 ~ +60 ℃ |
|
|
Power supply |
AC-3Phase-220//230380/400/415/440V-50/60Hz |
|
|
Control voltage |
DC-36 / 48V |
|
|
Motor protection class |
IP54 IP55 IP65 |
|
|
Control way |
Cabin, wireless remote, pendant push button |
|
|
Safety device |
Buffer,current overload protection,overload device,power failure protection |
|
|
Application area |
Factory,workshop,warehouse,power station,logstic,etc. |
|
|
Painting color |
Yellow,Red or Customzied |
|
Metal Ladle Casting Bridge Crane Environmental conditions
1.The power of crane is three—phase AC;rated frequency is 50HZ;rated voltage is 380V;
2.The temperature of working environment is-10~+60℃;
3.The relative humidity is no more than 50% when the temperature is+40℃;
4.If the requirements are more than above-mentioned,it shall carry out the requirements in the purchase contract as the user asks.

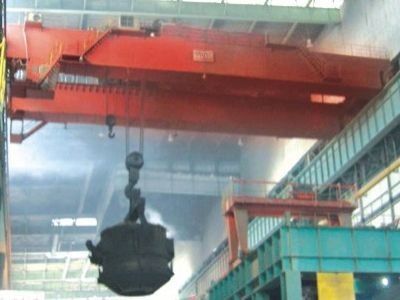

Metal Ladle Casting Bridge Crane Photos
