Product Details:
|
| Product Name: | Container Gantry Crane RMG Crane | Keywords: | Rail Mounted Container Gantry Crane |
|---|---|---|---|
| Application: | Port,yard | Lifting Mechanism: | Electric Winch Trolley |
| Control Method: | Cabin / Remote Control | Working Duty: | A6 A7 A8 |
| Working Temperature: | -20℃~+40℃ | Span: | 22m 30m |
| Capacity: | 35t 40.5t | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | 40ton rmg container cranes,40ton Ship To Shore Gantry Crane,rmg container cranes 380VAC |
||
40ton Container Gantry Crane RMG Crane Rail Mounted Container Gantry Crane
Rail Mounted Container Gantry Crane Description
Rail-Mounted Container Gantry Crane (RMG) is a rail-mounted crane for unloading, stacking and loading 20ft, 40ft, 45ft ISO standard containers. Its power supply is provided by the cable drum. The crane consists of three mechanisms: hoisting, trolley walking and mast walking. The trolley runs along the track installed on the gantry beam, and can serve between the legs. The crane is able to move linearly along the track.
Portable 40t miniature container gantry crane is powered by 490BPG diesel engine, featuring low operating noise and low vehicle vibration. The main body is composed of a steel frame, a steel wire rope, a hydraulic motor for a hydraulic transmission system, a gear pump, a steering cylinder, a lifting cylinder, a double-acting balance valve and solid tires. The hoisting mechanism adopts four cylinders with a diameter of 180mm, which has large lifting capacity, low system pressure, stable and safe lifting, and high loading and unloading efficiency. It adopts two-wheel drive and four-wheel steering, and the maximum rotation angle can reach 110 degrees. It can realize steering and translation at any angle, and the turning radius is small. The control system consists of a whole set of valve body and operating rod, which is easy, convenient and flexible to operate.
Rail Mounted Container Gantry Crane Technical Parameters
| Technical Specifications | ||||
| Capacity | t | 35 | 40.5 | |
| Span | m | 30 | 22 | |
| Lifting Height | m | 16 | 12.3 | |
| Wok Duty | m | A6 | A7 | |
| Type of Container | 20' 40' 45' | |||
| Speed | Hoisting | m/min | 0~10 | 10/18 |
| Crab Travelling | 3.4~34 | 40 | ||
| Trolley Travelling | 2.9~29 | 45 | ||
| Rotation | r/min | - | 1.35 | |
| Rail | P43 | QU70 | ||
| Power | 3-Phase A.C. 380V 50Hz | |||
Rail Mounted Container Gantry Crane Advantages
* Rated lifting capacity: 40 tons.
* High efficiency in handling, stacking, and turning over extra long, extra wide, and overweight objects.
* Wide range of uses, good unit price, low operating cost and quick return on investment.
*Full hydraulic drive with 3 support points design ensures maximum stability and complete landing of the wheels.
* Solid tire design, 8-wheel combination, large diameter, wide wheel surface, high elasticity, high load capacity, reduce the grounding specific pressure during heavy-duty operations, and reduce the requirements for roads on the working ground.
* Adjustable operating speed, zero-speed braking, no braking hold.
* When wire rope is used, the maximum turning angle of a 20-foot container is 45 degrees, and the maximum turning angle of a 40-foot container is 26 degrees, which basically meets the requirements for bulk cargo to be loaded and unloaded in one turn.
* Frame modular detachable structure, easy to install.
* Wireless remote control reliability and control dual joystick, real-time operating system to achieve unlimited vision.
* Additional scales and height limit digital indicator safety system can be added.
* Built-in electrical system PLC program design.
* Can be customized design and manufacture according to user requirements

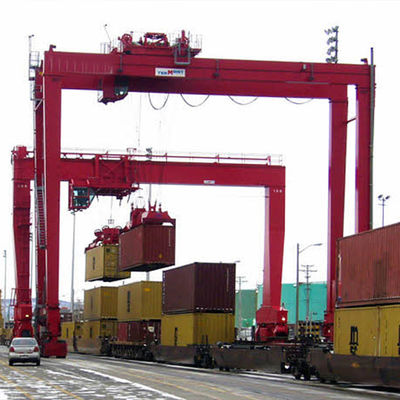

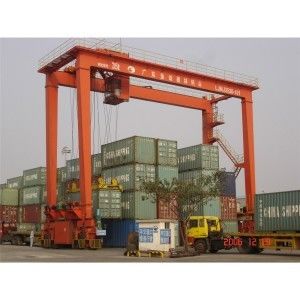

Rail Mounted Container Gantry Crane Photos
