Product Details:
|
Product Name: | Single Girder EOT Gantry Crane | Keywords: | Single Girder Gantry Crane |
---|---|---|---|
Lifting Capacity: | 16 Ton | Span: | 7.5-31.5 M |
Lifting Height: | 6-9 M | Lifting Speed: | 8 M/min |
Hoist Traveling Speed: | 20 M/min | Crane Traveling Distance: | 30 M/min |
Control: | Pendant Control Or Remote Control | Power Source: | 380V 50Hz Or As Per Your Request |
High Light: | 31.5m eot gantry crane,Gantry Crane 5 Ton Ground Control,eot gantry crane Ground Control |
Span 7.5 - 31.5m Single Girder EOT Gantry Crane 5 Ton Ground Control
Single Girder Gantry Crane Details
The MH type gantry crane is used with CD, MD and other types of electric hoist. It is a small and medium-sized crane with rail operation. Its applicable crane capacity is 3-32 tons, applicable span is 12-50 meters, and working environment is -20 ~ 40. ° C. This product is a general-purpose using crane,which is mostly used for loading and unloading or grasping materials in open aerial and warehouses. The crane control mode have ground control and cabin control. The crane structural frame have truss type, box type, top box with truss leg type for choose
Single Girder EOT Gantry Crane Technical Data
Lift weight(T) |
5 |
10 |
16 |
20 |
Span(m) |
8/12/16/20/24 |
8/12/16/20/24 |
8/12/16/20/24 |
8/12/16/20/24 |
Lift height(m) |
6/9/12 |
6/9/12 |
6/9/12 |
6/9/12 |
Voltage |
380/customize |
380/customize |
380/customize |
380/customize |
Single Girder EOT Gantry Crane Features

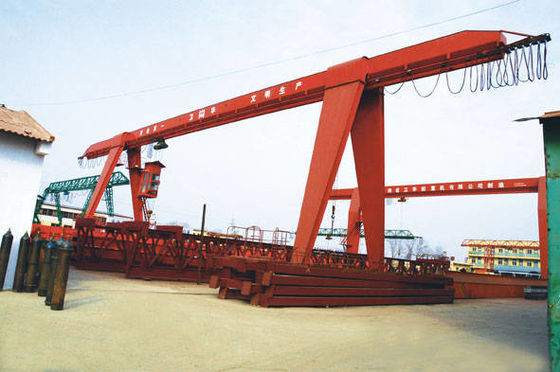

Single Girder EOT Gantry Crane Images
