Product Details:
|
| Name: | CD /MD Electric Wire Rope Hoist | Keywords: | Wire Rope Hoist |
|---|---|---|---|
| Type: | CD1 / MD1 | Capacity: | 0.25~32t |
| Work Duty: | M4 | Color: | Red Or Orange Or Other Customized |
| Condition: | New | Warranty: | 12 Months |
| Power Source: | 3 Phase 380V 50Hz Or Other Standards | Usage: | Lifting & Moving Materials |
| Sling Type: | Wire Rope | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | Electric Wire Rope Hoist 0.25t,Remote Control Electric Wire Rope Hoist,wire rope lifter 0.25t |
||
Remote Control CD / MD Electric Wire Rope Hoist 0.25t ~ 20t 12 Months Warranty
CD / MD Electric Wire Rope Hoist Description
Electric wire rope hoists include CD and MD type,and are widely applied to lifting heavy weight or being installed with electric bridge crane or straight and curve T-shape beam;It is also used in the hoist double beam, gourd gantry crane or cantilever crane;It's easily operated in the factory, warehouse, railway and dock etc.
CD / MD Electric Wire Rope Hoist Parameter
| Basic Parameters | Rated Load | Average Speed of Rope | Capacity of Rope | Rope Diameter | Hydraulic Brake | Motor Power | Overall Dimension | Total Weight |
| Model | KN | m/min | m | mm | Type | KW | mm | kg |
| JM0.5 | 5 | 16 | 90 | 7.7 | TJ2-100 | 2.2 | 820X670X330 | 120 |
| JM1 | 10 | 16 | 120 | 9.3 | TJ2-150 | 5.5 | 830X670X330 | 220 |
| JM1.5 | 15 | 16 | 160 | 11 | TJ2-200 | 7.5 | 1150X900X510 | 310 |
| JM2 | 20 | 16 | 150 | 12.5 | TJ2-200/YWZ-200/25 | 7.5 | 1190X925X550 | 350 |
| JM3 | 30 | 16 | 200 | 12.5 | TJ2-200/YWZ-200/25 | 11 | 1250X1037X560 | 450 |
| JM5 | 50 | 9 | 200 | 19.5 | YWZ-300/45 | 11 | 1568X1300X765 | 1000 |
| JM5 | 50 | 9 | 200 | 19.5 | YWZ-300/45 | 15 | 1568X1350X765 | 1100 |
| JM8 | 80 | 9 | 300 | 26 | YWZ-300/45 | 15 | 1950X1570X1040 | 1800 |
| JM8 | 80 | 15 | 300 | 26 | YWZ-300/45 | 22 | 1950X1630X1040 | 1900 |
| JM10 | 100 | 9 | 300 | 30 | YWZ-300/45 | 22 | 2100X1700X1050 | 2200 |
| JM10 | 100 | 15 | 300 | 30 | YWZ-300/45 | 30 | 2100X1700X1050 | 2400 |
| JM12 | 120 | 9 | 300 | 32 | YWZ-300/45 | 22 | 2200X1800X1006 | 2500 |
| JM16 | 160 | 9 | 400 | 36.5 | YWZ-400/90 | 30 | 2330X2250X1320 | 4000 |
| JM20 | 200 | 9 | 450 | 39 | YWZ-400/90 | 45 | 2450X2315X1400 | 4500 |
| JM30 | 300 | 9 | 450 | 47.5 | YWZ-400/90 | 55 | 2600X2700X1740 | 7800 |
Electric Wire Rope Hoist Features
* Electric wire rope hoist is one of the material handling equipment types, equipped on bridge crane, linear curve strander beams or it can also be used at the hoisting mechanism of gantry crane, linear crane for material handling by industrial and mining enterprises, railways, and warehouses, etc.
* Individual needs require specific solutions. That is why we developed the CD/MD Series, HB Explosion Proof Series, YH Metallurgy Series European Series. You can benefit from ground-breaking flexibility in all types of applications: from stationary installations to crane systems. For the first time, a rope hoist can be built either in a C-design or co-axial design utilising one basic technology.
* The lifting capacity of CD/MD wire rope hoist is 0.5 to 32 ton,and the working class is M3 and M4.

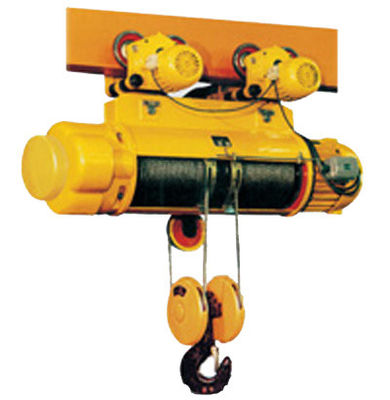

Electric Wire Rope Hoist Images
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
A:Lift capacity B:lift height C:speed request D:industry voltage or other specials you provide will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
