Heavy Duty 5 - 500t RTG Rubber Tyre Gantry Crane For Outdoor boxed shape

Heavy Duty 5 - 500t RTG Rubber Tyre Gantry Crane For Outdoor boxed shape
Heavy Duty 5 - 500t RTG Rubber Tyre Gantry Crane For Outdoor boxed shape Heavy Duty 5 - 500t RTG Rubber Tyre Gantry Crane For Outdoor boxed shape Heavy Duty 5 - 500t RTG Rubber Tyre Gantry Crane For Outdoor boxed shape Heavy Duty 5 - 500t RTG Rubber Tyre Gantry Crane For Outdoor boxed shape

Large Image :  Heavy Duty 5 - 500t RTG Rubber Tyre Gantry Crane For Outdoor boxed shape

Product Details:
Place of Origin: China
Brand Name: KORIG
Certification: ISO,CE
Model Number: RTG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD50,000-USD1,200,000
Packaging Details: Our package is conform to international package standard. Main beam and end beam are packaged by plastic cloth; Electric hoist, motors, reducers, electrical system and associated accessories are packaged by fumigation wooden box.
Delivery Time: 30-80days
Payment Terms: L/C, T/T
Supply Ability: 20002sets/year

Heavy Duty 5 - 500t RTG Rubber Tyre Gantry Crane For Outdoor boxed shape

Description
Name: Heavy Duty Outdoor Gantry Crane Other Name: RTG
Keywords: Rubber Tyre Gantry Crane Rated Loading Capacity: 5-500t
Warranty: 13 Month Condition: New
Application: Outdoor Feature: Gantry Crane
Duty Class: A5 A8 Power Source: 3 Phase 380V 50hz
High Light:

500t Rubber Tyre Gantry Crane

,

500t rtg gantry crane

,

Rubber Tyre Gantry Crane Boxed Shape



Heavy Duty Factory Sale Rubber Tyre Gantry Crane Used Outdoor



Rubber Tyre Gantry Crane Description


RTG Tyre Crane is composed of gantry, lifting trolley, crane travelling mechanism, cab and electric control system. The gantry is of boxed-shape structure, the girder is bias track double girder and the leg is Type U.


Hot Sale Rubber Tyre Gantry Crane, RTG Tyre Crane is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.



Rubber Tyre Gantry Crane Parameter



Lifting Capacity (t) 10 16 20/10 32/10 36/16 50/10
Span (m) 18-35
Lifting Height (m) 10-13
Duty Class A5-A8
Speed
(m/min)
Lifting 8.5 7.9 7.2/10.4 7.5/10.4 7.8/10.5 6/10.4
Trolley 43.8 44.5 44.5 41.9 41.9 38.13
Crane 40 38 38 40 40 38
Motor Lifting YZR180L-6/17 YZR225M-8/26 YZR225M-8/26
YZR200L-6/26
YZR280S-10/42
YZR200L-6/26
YZR280M-10/55
YZR225M-6/34
YZR280M-10/55
YZR200L-6/26
Trolley YZR132M1-
6/2.5*2
YZR132M2-
6/4*2
YZR132M2-
6/4*2
YZR132M1-
6/4*2
YZR132M1-
6/6.3*2
YZR132M1-
6/6.3*2
Crane YZR160L-6/13*2 YZR160L-6/13*2
YZR160M1-
6/6.3*4
YZR160L-6/13*2
YZR160M2-
6/8.5*4
YZR160M2-
6/8.5*4
YZR160L-6/13*4
YZR160M2-
6/8.5*4
YZR160L-6/13*4
Weight
(t)
Trolley 9 9.5 12 16 18 24
Total 63.2-100 78-106 79-120 95-108 106-155 195
Wheel Pressure (KN) 225-295 255-373 208-289 324-334 314-363 452
Steel Track 43kg/m 50kg/m
Power Source 3-phase A.C 380V 50HZ (As your demand)



Rubber Tyre Gantry Crane Features


1. Reasonable structure and favorable performance.
2. Smooth starting and stopping.
3. Safe and reliable traveling, long life.
4. Low noise, commodious cabin with good view.
5. High quality automatic welding and NDT inspection
6. Crane drive: IP54 or IP44, level F insulation
7. Especially suitable for the container lifting.
8. Designed according to your reques



Advanced Manufacturing Technology



Steel shot blasting pretreatment, the surface quality reaches Sa 2.5 grade.

Crane wheel and wheel shaft through the high frequency quenching and tempering treatment, it eliminates the internal stress and ensures the machining accuracy. the use of welding robot, the main girder inseam weld by advanced MAG welding. The main girder welding adopts radiographic testing and ultrasonic testing to ensure the welding quality.



High Reliability



The motor and ruducer are imported from domestic famous brands with industry reconnition, quality assurance. It has reliable quality.

The main electrical components is from the selection of Schneider, Siemens, ABB and other international well-known brands, the protection degree electronic control box is less than IP54.

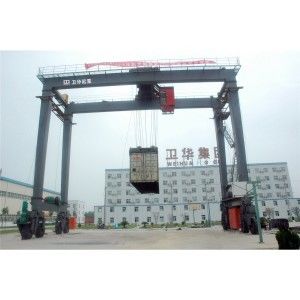

Rubber Tyre Gantry Crane Images

Heavy Duty 5 - 500t RTG Rubber Tyre Gantry Crane For Outdoor boxed shape 0

Heavy Duty 5 - 500t RTG Rubber Tyre Gantry Crane For Outdoor boxed shape 1
