Product Details:
|
| Product Name: | Rubber Tyre Gantry Crane | Keywords: | RTG |
|---|---|---|---|
| Rated Loading Capacity: | 5-500t | Span: | Customized |
| Feature: | Gantry Crane | Certification: | CE/ISO9001/SGS |
| Condition: | New | Warranty:: | 1 Year |
| Machinery Test Report:: | Provided | Color:: | Clients' Requirments |
| Control Method: | PLC Control | After-sales Service Provided:: | Field Installation, Commissioning And Training |
| High Light: | PLC Control Rubber Tyre Gantry Crane,45ft Container Rubber Tyre Gantry Crane,PLC Control rtg gantry crane |
||
PLC Control RTG Rubber Tyre Gantry Crane For 40ft 45ft Container
Rubber Tyre Gantry Crane Introduction
The rubber tyre container gantry crane (refered to “RTG” as below) is used to offload, stack and load 20ft and 40ft containers. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track which mounted on gantry beam is capable to serve among legs. The crane is able to make straight movement along rails.
Full hydraulic drive for crane traveling mechanism with Step less speed change. The long traveling use hydraulic closed circuit with good transmission efficiency, less fault. There are safety indicator and overlord limiter to ensure safety of operators and products. All operation are controlled by CAN-BUS control.
The crane is equipped with appropriate container spreader, which should be able to handle single unit 20ft and 40 ft containers；Or twin-lift container;
Hoisting mechanism and trolley travel are able to work simultaneously or separately with load; the same applies to gantry travel and trolley travel.
Electrical drive of main working mechanism equipped with full digital AC frequency convertor, PLC speed governor and constant power adjustment device for hoisting mechanism.
Rubber Tyre Gantry Crane Parameters
|
Lifting capacity (With Spreader) |
t |
30.5 |
35 |
40.5 |
||
|
Working duty |
|
A6 |
A6 |
A6 |
||
|
Span |
m |
23.47 |
23.47 |
23.47 |
||
|
Base |
m |
7.4 |
7.4 |
7.4 |
||
|
Lifting height |
m |
15.4 |
15.4 |
18.2 |
||
|
Speed |
Hoisting |
Full load |
m/min |
12 |
12 |
23 |
|
Only with spreader |
24 |
24 |
46 |
|||
|
Cross travelling |
70 |
70 |
70 |
|||
|
Travelling |
Full load |
45 |
45 |
45 |
||
|
Only with spreader |
90 |
90 |
90 |
|||
|
Diesel motor total power |
KW |
~305 |
~305 |
~400 |
||
|
Generator total power |
KVA |
~518 |
~595 |
~720 |
||
|
Max. Working load of wheel |
KN |
273 |
287 |
320 |
||
|
Trolley slewing angle |
° |
-10-190 |
||||
|
Maintenance hoist |
|
Rated lifting capacity 2t-5t, |
||||
|
Power supply |
|
3-phases 4 line 380v/415v/440v 50 Hz |
||||
Features of Rubber Tyre Gantry Crane
1. Handle 20ft,40ft,45ft container.
2. All mechanism are interlock to ensure operation safety;
3.Wind cable,electric hydraulic rail clamp,anchor, lighting rod etc.as safety device.
4. PLC control, AC frequency speed control, stable and reliable running;
5. Diesel engine power ;
6. Adequate protection devices, communication and lighting system.
7.Crane Monitoring Management system (CMS) to monitor each mechanism working condition and fault diagnose;

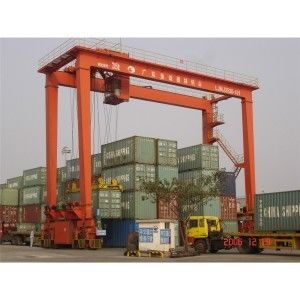

Rubber Tyre Gantry Crane Photos
