Product Details:
|
| Product Name: | Electric Hoist Overhead Crane | Keywords: | Double Girder Bridge Crane |
|---|---|---|---|
| Lifting Height: | 9m 12m 16m 24m | Lifting Capacity: | 10 Ton 25 Ton |
| Electric Hoist: | WH164 ; CD1(MD1) | Control Method: | Ground Controlling , Cabin Controlling |
| Core Components: | Engine, Bearing, Gearbox, Gear | Applicable: | Building Material Shops, Machinery Repair Shop |
| High Light: | 25Ton Double Girder Bridge Crane,25Ton Overhead Electric Hoist Crane,Double Girder Bridge Crane Cabin controlling |
||
10 Ton Double Beam Eot Crane Overhead Electric Hoist Crane A3--A5
Double Beam Eot Crane Brief Introduction

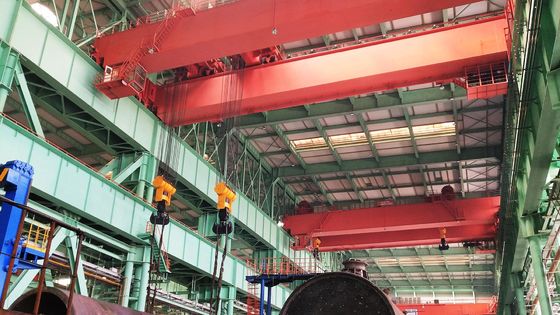

The QD double-girder bridge crane is composed of a box-type bridge frame, a lifting trolley, a crane operating mechanism, and an electrical system. It is the best choice for users who need high-speed, heavy-duty jobs.
Application scenarios include: transshipment, assembly, maintenance, loading and unloading operations in mechanical processing workshops, affiliated workshops of metallurgical plants, warehouses, freight yards, etc., which are safe and reliable, high in work efficiency, and long in service life.
Double Beam Eot Crane Specification
| SWL rated lifting capacity | t | 32/10 | |||||||||
| Opertional method | m/min | Ground controlling；Cabin controlling | |||||||||
| speed | main.hook lifting | 3(0.3/3) | |||||||||
| Aux.hook lifting | 7(7/0.7) | ||||||||||
| crab travelling | 20 | ||||||||||
| trolley travelling | ground | 20；30 | |||||||||
| room | 30；40 | ||||||||||
| Motor | main.hook lifting | /kw | ZDX62-6/18.5,(ZDS2.2/18.5) | ||||||||
| Aux.hook lifting | ZD151-4/13(ZDS1-1.5/13) | ||||||||||
| crab travelling | ZDY123-4/2.2x2 | ||||||||||
| trolley travelling | ground | ZDY123-4/2.2x2 | ZDY131-4/3x2 | ||||||||
| room | ZDR112L2-4/3.0x2 | ZDR125-4/4.6x2 | |||||||||
| Electric Hoist | WH164;CD1(MD1) | ||||||||||
| Lifting Height | m | 9;12;16;24 | |||||||||
| working track recommended | A3--A5 | ||||||||||
| Power source | 3-phase A.C.50Hz;380V | ||||||||||
| trolley track recommended | 43KG/M | ||||||||||
| Span | m | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | |||
| Max.wheel presure | KN | 167 | 184 | 196 | 206 | 215 | 224 | 233 | |||
| Crane weight | ground controlling | kg | 12530 | 14660 | 16360 | 18870 | 21650 | 24260 | 27060 | ||
| Cabin controlling | kg | 13430 | 15560 | 17260 | 19770 | 22550 | 25160 | 27960 | |||
Double Beam Eot Crane Component
Double Beam Eot Crane Safety
1. Weight overload protection device Weight overload protection device will warn when the lifted materials are beyond the capacity, and the displayer will show the data.
2. Current overload protection device shall cut off the power when the current overstep the set figure.
3. Emergency stop system shall be used to stop all motions once any emergency occurs to avoid more damage.
4. The limit switch prevent the travelling mechanism from over travel.
5. The polyurethane buffer can absorb impact and help travelling mechanism stop softly and harmlessly.
Double Beam Eot Crane Details
