Double Girder Rail Mobile Container Gantry Crane RMG 40 Ton

Double Girder Rail Mobile Container Gantry Crane RMG 40 Ton
Double Girder Rail Mobile Container Gantry Crane RMG 40 Ton

Large Image :  Double Girder Rail Mobile Container Gantry Crane RMG 40 Ton

Product Details:
Place of Origin: China
Brand Name: KORIG
Certification: ISO
Model Number: RMG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD30,000-USD1,800,00
Packaging Details: 1. Electrical parts and hoist are packed by strong plywood box, to prevent the rain soaked. 2. Main beam, end beam, platform railing and others are packed in plastic woven cloth, to prevent corrosion in seawater.
Delivery Time: 40-75days
Payment Terms: T/T, L/C
Supply Ability: 1000sets/year

Double Girder Rail Mobile Container Gantry Crane RMG 40 Ton

Description
Product Name: H Technology Container Gantry Crane For 40ft And 20ft Containers Rated Loading Capacity: 5-500t
Span: 18~35M Duty Classification: A5
Lifting Mechanism: Heavy Duty Cart Crane Feature: High Efficiency
Main Electrical Parts: Schneider Power Source: Three-phase AC. 127~480V 50/60Hz
Certification: ISO CE SGS GOST Color: Customer Requirements
High Light:

Double Girder Container Gantry Crane

,

Container Gantry Crane Mobile

,

Container Gantry Crane 40t

Double Girder Rail Mobile Container Gantry Crane RMG Crane 40ton



High Quality 40ft 30ft 20ft Container RMG Rail Mounted Gantry Crane





High Technology 40ft 20ft Container Gantry Crane RMG Rail Mounted Gantry



RMG Rail Mounted Gantry Details



Rail mounted container crane is one kind of heavy duty gantry crane, it is widely used in railway yard,port container yard to stock,load/unload truck. This kind of Crane is available for general service, such as loading, unloading, lifting and transferring work in outdoor yards of the factory or on railways, also works as container crane matching special hang parts. It is used to handle ISO20ft,40ft,45ft container; Rail-type container gantry crane is mainly consists of the steel structure, lifting mechanism, micro-transfer mechanism, spreader anti-sway system, crane travelling mechanism, container spreaders, electrical equipment, and other necessary auxiliary equipments.


The container rail mounted gantry crane adopts frequency conversion, PLC control system and CMMS fault detection system. Main standard reference: GB/T19683-2005, JT/T566-2004, and ISO standard of International Standardization Organization, European FEM, Japan JIS standard.



RMG Rail Mounted Gantry Structure



Capacity (t)

10

16

20/10

32/10

36/16

50/10

Span (m)

18~35

18~30

18~35

22

26

22~35

35

Lifting height (m)



Main hook

11.5

10.5,12

10.5

11.5

11.5

12

Auxiliary hook





11

12

12

13

Speed (m/min)

Main hook

8.5

7.9

7.2

7.5

7.8

6

Auxiliary hook





10.4

10.4

10.5

10.4

Trolley travel

43.8

44.5

44.5

41.9

41.9

38.13

Long travel

37.6,40

38,36

38,36

40

40,38

38

Duty classification

A5

Power source

Three-phase AC. 127~480V 50/60Hz



RMG Rail Mounted Gantry Advantage



1. Double box beam with steel legs moving through the ground beam as crane travelling system

2. The camber of main beam will be designed as Span*1-1.4/1000.

3. Steel Material: Q235 or Q345

4. Shot-blasting Sa2.5 for main girder and supporting beam

5. Epoxy zinc rich high quality painting.

6. Electrification and outfitting

7. Conductor power supply: Cable Reel or busbar.

8. Frequency conversion, double speed, single speed, and All hoist and crane movements are independent an d can be run simultaneously different design duo to meet crane applications

9. Whole layout provides good protection against special working environment. Such as gas workshop



Attention



Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).

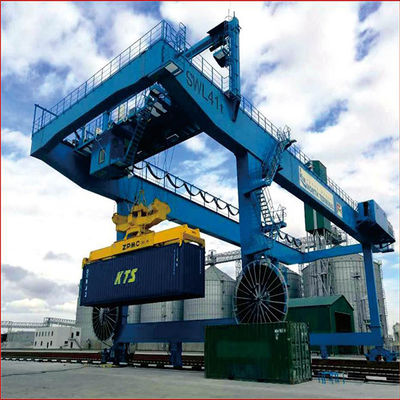

RMG Rail Mounted Gantry Images



Double Girder Rail Mobile Container Gantry Crane RMG 40 Ton 0Double Girder Rail Mobile Container Gantry Crane RMG 40 Ton 1
