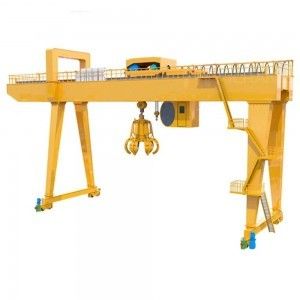

Wide Span 80t Travelling Gantry Crane Portal Gantry Crane With Hook

Wide Span 80t Travelling Gantry Crane Portal Gantry Crane With Hook
Wide Span 80t Travelling Gantry Crane Portal Gantry Crane With Hook

Large Image :  Wide Span 80t Travelling Gantry Crane Portal Gantry Crane With Hook

Product Details:
Place of Origin: China
Brand Name: KRG
Certification: CE ISO
Model Number: MG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-USD50000
Packaging Details: 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
Delivery Time: 20-30 workdays
Supply Ability: 5000sets/per month

Wide Span 80t Travelling Gantry Crane Portal Gantry Crane With Hook

Description
Name: Double Girder Gantry Crane Application: Outside
Color: As Client's Demand Work Duty: A5-A8
Main Electrical Parts: Siemens, Schneider And CHINT Lifting Mechanism: Wire Rope Electric Hoist Trolley
High Light:

80t Travelling Gantry Crane

,

80t Portal Gantry Crane

,

wide span Travelling Gantry Crane

Specialized Goliath Crane Outdoor Using With Hook 80t Double Girder Gantry Travelling Crane With Trolley



Product Description

MG double girder gantry crane with hook is composed of gantry,crane crab,trolley traveling mechanism,cab and electric control system. The gantry is of box-shaped structure ,Support legs can be customized according to customer requirements.



Features

1. Light duty single beam gantry crane

2. Lifting mechanism is electric trolley/hoist; it can equip with hook, bucket, grab, magnetic

chuck and other lifting tools!

3. Spare parts: It can equip with two hooks, one main hook and one secondary hook!

4. Beam: It is composed of bridge frame, trolley, cart operating mechanism and electric equipment.

The crane girder is produced without welding; it makes the beam much more strength!

5. Usage: It is applicable to transferring, assembling, check and repair as well as load and unload

various materials!

6. Note: It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

7. Operation: The operation of this crane is completed in driver's cabin, which has open type and closed type and an be installed on left or right side according to practical situation. The direction of entering the

gate has two forms, sideway and ends, in order to satisfy the user’s choice under different conditions.

8. Speed: There are three speeds: trolley lifting speed, trolley traveling speed, crane.



Advantages of Double Girder Gantry Crane

1. Flexible operation and easy maintenance.

2. Large loading capacity and high working efficiency.

3. wide span, high crane stability and reliability.

4. Novel structure,Advanced technology, delicate design, attractive appearance.



Technical Parameters

Capactiy(t) Span (m) Lifting Height
(m)
Work Duty Main Lifting Speed
(m/min)
Aux Lifting Speed
(m/min)
Crab Travelling Speed
(m/min)
Trolley Travelling Speed
(m/min)
Power (kw) Rail
5 18~26 10 A5 9.2 - 37.2 37.7 27.8 43kg/m
30~35 12
10 18~22 10 8.5 - 37.2 37.7 35.8
26 10 44.8
30~35 11
20/5 18~26 10 7.1 9.2 36.6 40.1 65
30~35 12 44 73
32/5 18~26 10 6.3 9.2 29.8 38 89
30~35 12 40 107
50/10 18~26 10 5.9 8.5 31 40.1 141.5 QU80
30~35 12 44 157.5
75/20 18~26 12 3.9 7.2 38.4 3.7~37 146
30~35
100/20 18~35 12 3.1 7.2 33.9 3.23~32.3 162
160/50 18~35 15 3.5 5.9 22.5 2.8~28 242 QU100
200/50 18~35 15 3.5 5.9 29 2.8~28 299
320/80 18~35 15 3.6 6 16.7 2.8~28 476 QU120
400/30 18 18 0.15~1.5 6 10 18 275
500/80 28.5 33 0.15~1.5 0.6~6 1.36~13.6 1.6~16 350
600/80 36 22 0.13~1.3 0.4~4 1.5~15 2.5~25 405
800/10 36 14 0.1~1 7 0.5~5 1~10 330



Wide Span 80t Travelling Gantry Crane Portal Gantry Crane With Hook 0

Wide Span 80t Travelling Gantry Crane Portal Gantry Crane With Hook 1
