Product Details:
|
| Name: | 3000 Kg Stationary Jib Crane | Keywords: | Mounted Jib Crane |
|---|---|---|---|
| Lifting Capacity: | 3000 Kg | Lifting Speed: | 8 M/min |
| Cross Traveling Speed: | 20 M/min | Rotation Speed: | 0.5 R/min |
| Control: | Pendant Control Or Remote Control | Color: | As Per Your Requirements |
| Rotation Angle: | 180, 270, 360, Adjustable | Crane Duty: | A3 |
| High Light: | 3000kg Stationary Jib Crane,Stationary Jib Crane Pendant Control,3000kg Free Standing Jib Crane |
||
3000kg Stationary Jib Crane Pendant Control Free Standing Jib Crane
Mounted Jib Crane Description
Column Jib Crane is a kind of crane that fixed on the ground, which is mainly consisted of up-pillar, down pillar, main beam bar, electric hoist, rotating mechanism and electric system, etc. It’s versatile and easy to operate.
Jib crane provides a space-saving and economical solution for lifting and moving items for assembly within a smaller radius.
This free standing Jib crane can be supplied with manual slew at standard or with motorized slew for option.
Mounted Jib Crane Specification
| Lifting Capacity | t | 1 | 2 | 3 | 5 | ||||
| Lifting Height | m | 5 | 5.5 | 5 | 5.5 | 4.5 | 5 | 4.5 | 5 |
| Work Radius | m | 4 | 4.5 | 4 | 4.5 | 5 | 5.5 | 5 | 5.5 |
| Crane Duty | GB | A3 | |||||||
| Lifting Speed | m/min | 8 | |||||||
| Traveling Speed | m/min | 20 | |||||||
| Rotation Speed | m/min | 0.5 | |||||||
| Rotation Angle | ° | 180, 270, 360, Adjustable | |||||||
Mounted Jib Crane Features
Compact Design
The compact structure design makes pillar jib crane light in dead weight and excellent in work performance, improves space utilization rate and narrows hook operation distance to the maximum intently. The best material handling solution for your applications.
Smooth, Fast Loading, Excellent Performance
Stepless frequency conversion control system is installed to the crane and trolley, which make pillar jib crane brake stably, locate accurately, perform reliably, and travel steadily, position quickly, and solve the problem of swing of loads.
Safer, Reliable, Using Free Maintenance Design
High technology is adopted which makes the frequent operations safe and efficient.
Perfect braking systems can largely improves pillar jib crane safety and reliability, equipped with dustproof design, the working life can reach up to 1 million times.Hardened and polished tooth surface ensures the operation of crane smoothly without troubles.

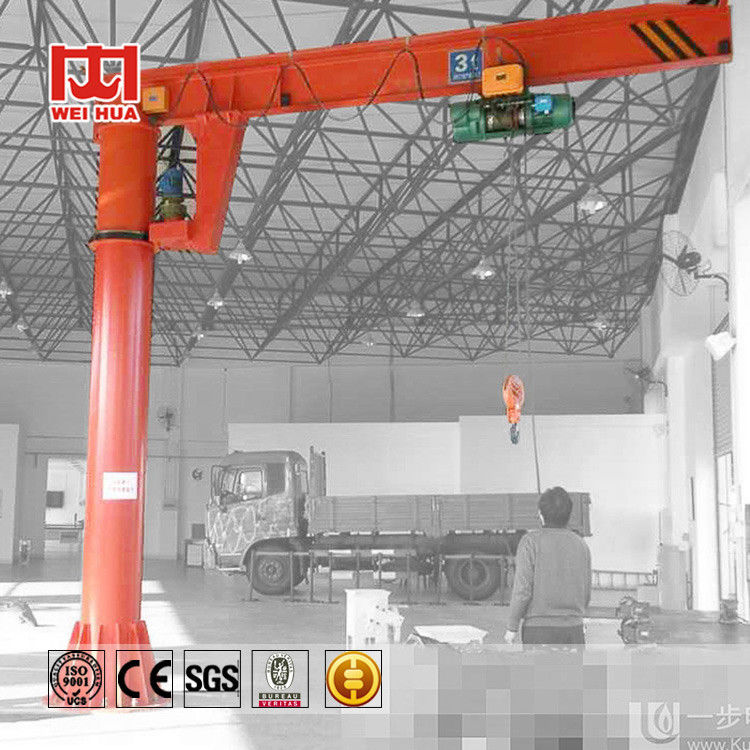

Mounted Jib Crane Photos
