Product Details:
|
| Name: | Electric Chain Block Hoist | Keywords: | Electric Chain Hoist |
|---|---|---|---|
| Power Source: | Electric | Lift Speed: | 8m/min |
| Machinery Test Report: | Provided | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Ge |
| Sling Type: | Chain | Chain: | G80chain |
| High Light: | 12m Electric Chain Block Hoist,PLC 10 Ton Electric Chain Hoist,8m/min Electric Chain Block Hoist |
||
Customized 12m Electric Chain Block Hoist 10 Ton Electric Chain Hoist Control
Electric Chain Block Hoist Information
It is an ideal equipment for lifting, transporting, loading and unloading goods and working. It is more flexible and convenient to use in a small space workplace, safe and convenient, light weight, small size, high working level, good safety performance, high reliability and low failure rate. With an electric sports car, you can walk up and down the I-beam, usually in four directions: up, down, left and right.
Electric Chain Block Hoist Parameter
| Capacity (t) | Lifting Speed | Motor Rating | Lifting Height | Fall | Work Duty FEM/ISO |
| (m/min) | (kw) | (m) | |||
| 0.25 | 2.0/8.0 | 0.09/0.36 | 3~8 | 1/1 | M5 |
| 0.32 | 2.0/8.0 | 0.18/0.75 | 1/1 | M5 | |
| 0.5 | 2.0/8.0 | 0.18/0.75 | 1/1 | M5 | |
| 0.63 | 2.5/10 | 0.45/1.90 | 1/1 | M5 | |
| 1 | 2.5/10 | 0.45/1.90 | 1/1 | M5 | |
| 1.5 | 1.25/5.0 | 0.75/3.0 | 1/1 | M5 | |
| 2 | 1.25/5.0 | 0.45/1.90 | 1/1 | M5 | |
| 2.5 | 1.25/5.0 | 1.2/4.8 | 1/1 | M5 | |
| 3 | 1.25/5.0 | 0.75/3.0 | 1/1 | M5 | |
| 5 | 1.25/5.0 | 1.2/4.8 | 1/1 | M5 |
Electric Chain Block Hoist Features
High efficiency wire rope Electric Chain block Hoist
--Maximum lifting weight can reach 5t, maximum lifting height up to 12m, which can be more widely used.
Modular design wire rope Electric Chain block Hoist
--Aluminum casing, through finite element analysis to optimize the design, form a standard modular series, small size, light weight, high strength, easy to assembly, sealing well. wire rope Electric Chain block Hoist
Humanization design wire rope Electric Chain block Hoist
--Sprocket uses plug-in connectors for quick replacement of the entire sprocket without disassembling the motor or gear parts, thus greatly reducing downtime and easy for maintenance.
Maintenance free
--First electric plug braking then rely on brake to make the brake more quickly and smoothly, and also greatly reduces brake wear. Due to the small wear, there’s no need to adjust the brake and improves the life and reliability; maintenance-free for 10 years.

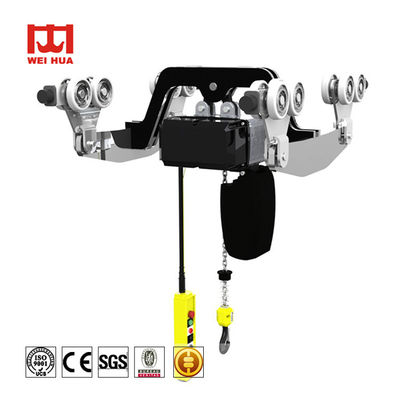

Electric Chain Block Hoist Images
